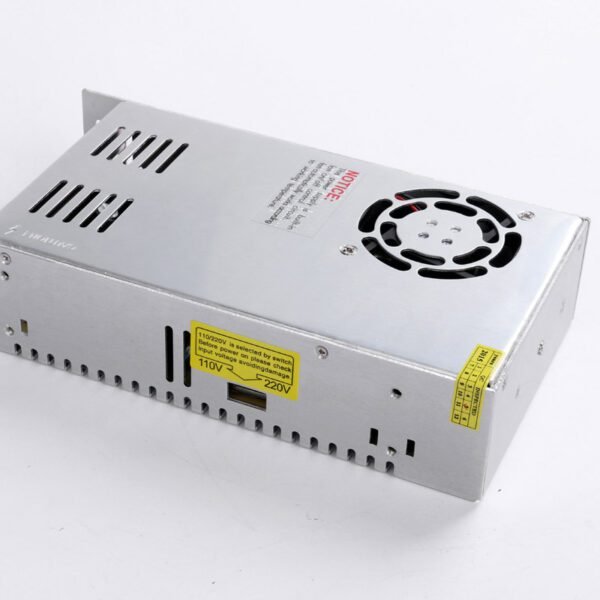

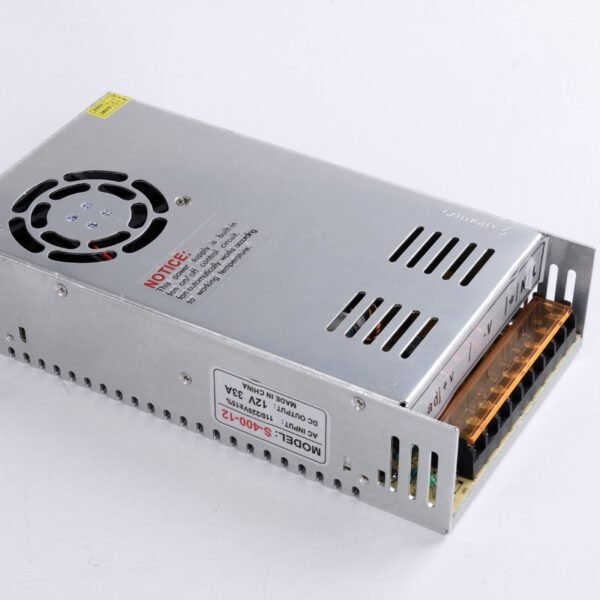

input 100-265V output 12V 33A 400W led power supply for led strip lights
| Input Voltage | AC 100-265V |
| Output/ Current | 12V 33A |
| Power(W) | 400W |
| Item Size(mm) | 214*113*49MM |
| Weight(g) | 700g |
| Efficiency | >85% |
| Adjustable Range For DC Voltage | ±10% |
| Overload stability | ±2% |
| Wave & Noise | ≤1% |
| Overload Protection | 110%-150% intermittent operation, self-recovery |
| High-voltage Insulation Test | Input and Output 3KV/1MIN |
| AC-GND | 1.5KV/1M1N |
| Setup Time | 0.1-0.5S |
| Hold Up Time | 0.1-0.3S |
| Working Temperature | -30℃ ~ +70℃ |
| Heat Dissipation Method | Self-cooling |
| MTBF(reliability/mean-time-to failure) | 50K hrs min. MIL-HDBK-217F (25) |
| Warranty | 3years |
| Certification | EMC, CE ,RoHS, FCC, LVD |
| Performance Advantages | Built-in EMI filter, good immunity, 100% load aging, Over current and short circuit protection |
Feature:
- High efficiency, High reliability, Long lifetime;
- CE FCC ROHS certified led power supply
- Protected level: IP20;
- Universal AC input/Full rang;
- Efficiency: >85%;
- Built-in active PFC function, PFC>0.8;
- Protections: Short circuit/Over voltage/Over temperature;
- Low output ripple noise;
